Fire Curtains
A complete automatic fire curtain range
Every component, from the steel head box to the final fabric stitch, is manufactured in-house at our Jaipur facility. Tested to EN 1634-1 and EN 12101-1, independently verified by Efectis and TÜV SÜD. Marking and DoP on request.
• Our range
Fire and smoke curtains
Automatic, accordion, egress and fixed configurations, tested to EN standards and manufactured in-house.
• Compare
Product matrix
Compare fire and smoke curtains by orientation, standard and rating in a single view.
| Product | Type | Standards | Orientation | Integrity | Radiation |
|---|---|---|---|---|---|
| Automatic Fire Curtains | Fire Curtain | EN 1634-1, NBCS 2026 Type 1/2 | Vertical | Up to 240 min | Up to 120 min |

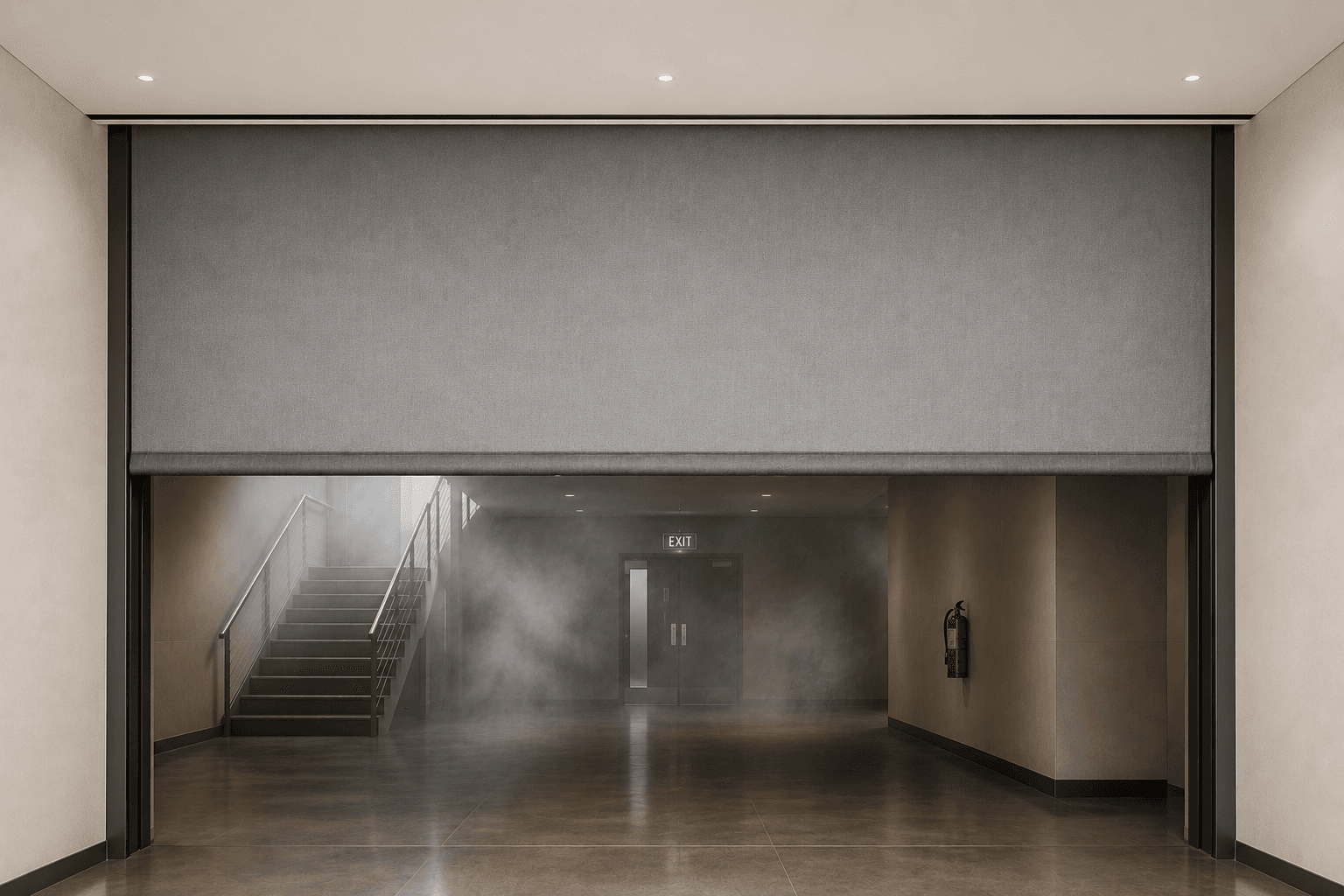

| Automatic Smoke Curtains | Smoke Curtain | EN 12101-1 | Vertical | Class on request | Not rated |

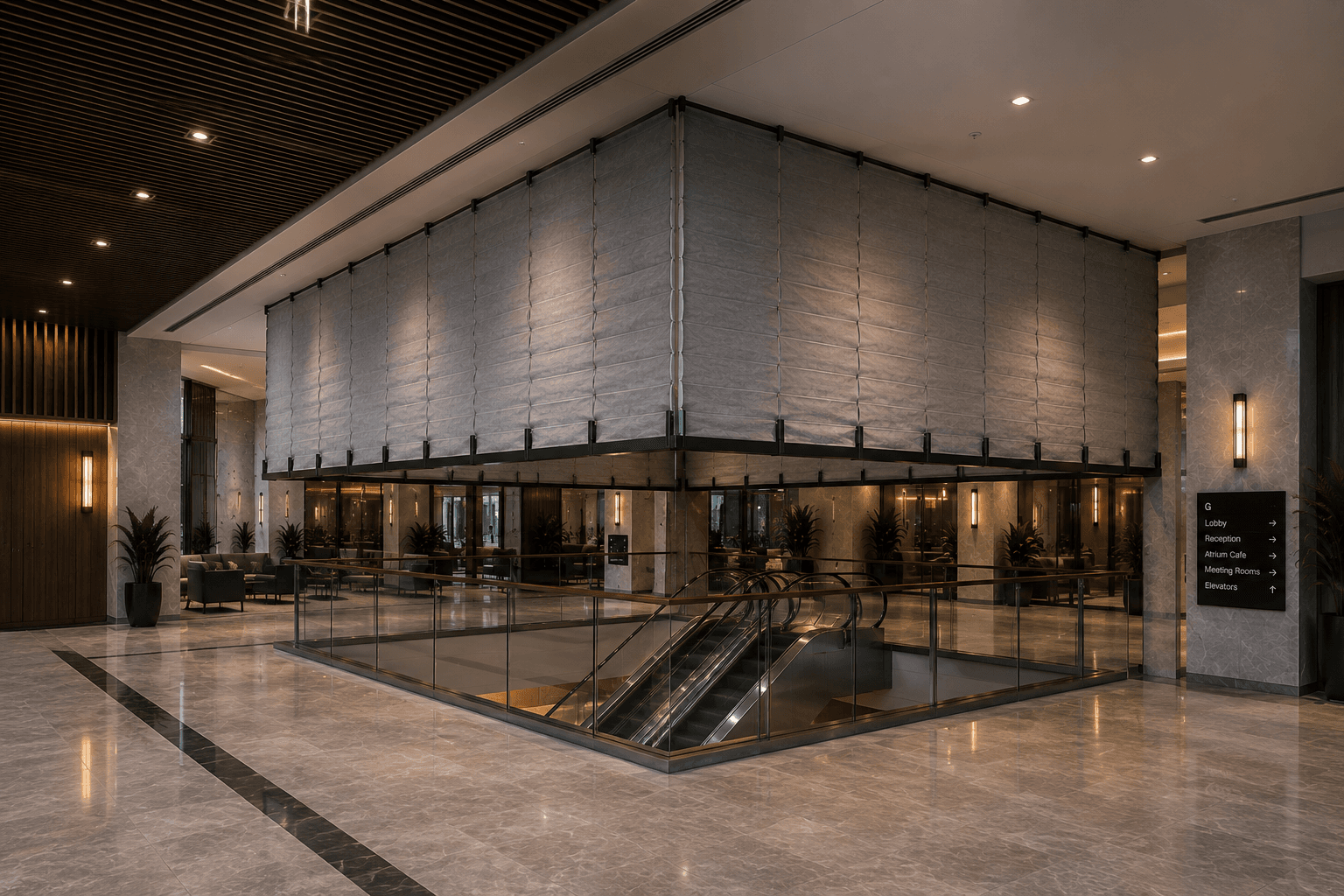

| Accordion Fire Curtains | Fire Curtain, Smoke Curtain | EN 1634-1, EN 12101-1 | Multi-sided (Accordion) | Up to 240 min | Up to 60 min |

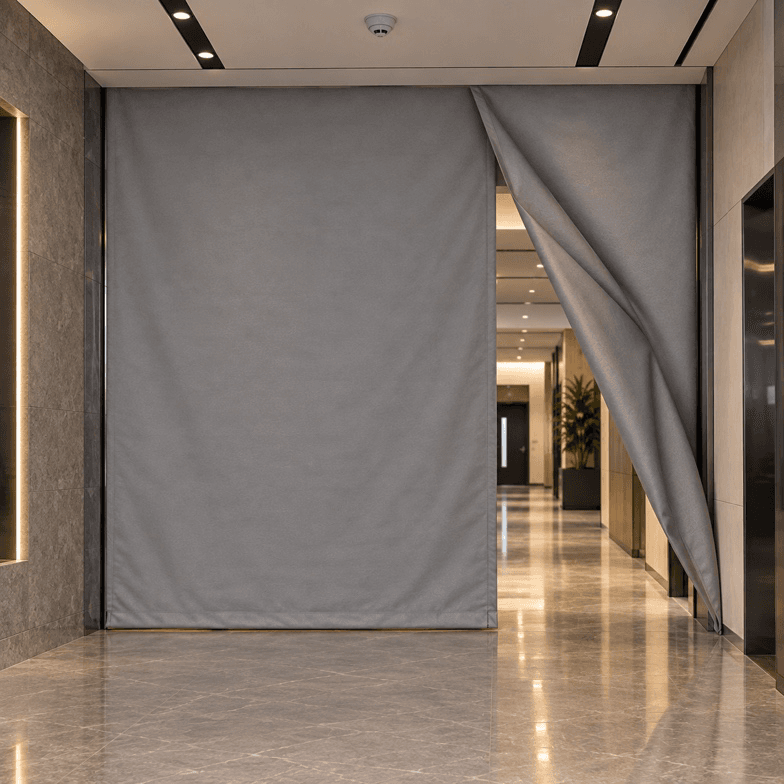

| Egress Fire Curtains | Fire Curtain | EN 1634-1 | Vertical | Up to 120 min | Up to 30 min |

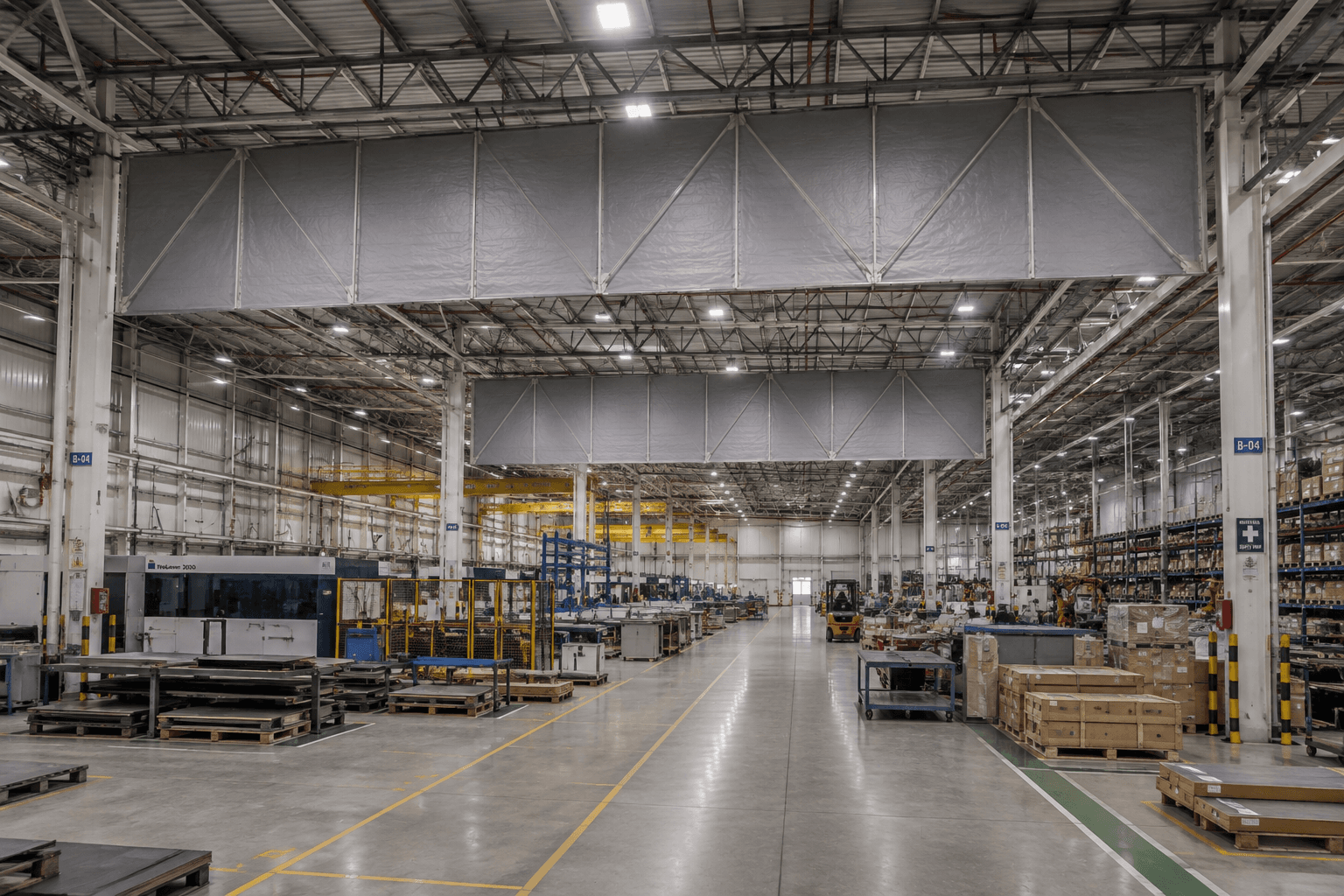

| Fixed Fire Curtains | Fire Curtain | EN 1634-1 | Vertical, fixed | Up to 240 min | Up to 60 min |
• Standards
Tested to Indian and European standards
NBCS 2026, Clause 4.5.2.1, sets out fire curtain performance types directly. BÖLDT curtains are tested to these parameters and to EN 1634-1 and EN 12101-1 for projects that require international specification standards. CE marking and Declaration of Performance are available on request.
Integrity
Resists flame and hot gas passage, 120 min
Radiation control
Heat transfer capped at 15 kW/m² at 1 m
Insulation
Limits far-face temperature rise, +140°C max
Smoke control
Leakage capped at 3 m³/m/h at 25 Pa
EN 1634-1
Fire Resistance of Door and Shutter Assemblies
Governs fire resistance testing of door sets, shutter assemblies and openable windows - including fire curtain systems. Curtains are evaluated on their ability to maintain integrity and control fire and smoke spread across openings for defined periods.
EN 12101-1
Smoke and Heat Control Systems
Defines performance requirements for smoke and heat control systems in buildings. Curtains tested to EN 12101-1 demonstrate measurable performance in real fire scenarios, supporting life safety strategy and regulatory compliance.
EN 15269-11
Extended Application of Fire Resistance Test Results - Curtain Assemblies
Provides the framework for extending fire test results across a defined range of curtain sizes, widths and installation conditions, rather than requiring independent testing for every configuration.
EN 13501
Fire Classification of Construction Products
Translates fire test results into clearly defined performance ratings - integrity (E), radiation (W) and insulation (I) - giving specifiers, consultants and authorities a transparent, universally understood classification.
Specify fire curtains for your next project
Our technical team can help with curtain sizing, drop configuration and BMS integration.
